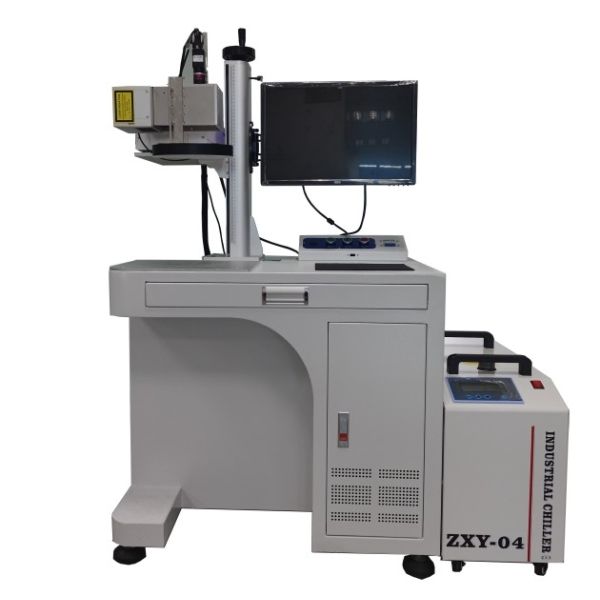

CCD Visual UV Laser Marking Machine Galvanometer Marking Machine 3W/5W/10W/15W
UV Laser Marking Machine with vision system and an assembly line operating platform :
Product Features:
1. Good beam quality, small focusing spot, able to achieve ultra-fine marking, and marking speed is fast and efficient;
2. Most materials can absorb ultraviolet lasers, thus expanding the application range;
3. Heat-affected area is extremely small, no heat effect, no material burning problem;
4. High-performance ultraviolet laser and high-precision scanning galvanometer, high precision, long service life;
5. Overall stable performance, small size, low power consumption;
6. CCD Visual system , which can automatically locate the marking and make the marking more accurate.
Application Fields:
The UV laser marking machine is mainly used in the high-end market for ultra-fine processing, such as marking on the surface of packaging bottles for cosmetics, drugs, food, and other high molecular materials, with fine effects and clear and firm marks, superior to inkjet coding and without pollution; marking on flexible PCB boards and cutting; processing of microholes and blind holes on silicon crystal wafers; marking of two-dimensional codes on LCD liquid crystal glass; marking on the surface of glassware and metal surfaces with coatings; marking on plastic keys, electronic components, gifts, communication equipment, building materials, and so on.
Product parameter:
| Product name | UV laser marking machine |
| Maximum laser power | UV-3W/5W/10W/15W |
| Laser type ND | YVO |
| The laser wavelength | 355nm |
| Beam quality | 1.1M2 |
| machine power | 1.2KW |
| Q-tuning frequency | 0-100HZ |
| The minimum characters of marking | 0.1mm |
| The minimum line width | 0.01mm |
| Marking speed | 400 characters/SEC |
| Repetition accuracy | ±0.001mm |
| Dimensions size | 1000mm*900mm*230mm |
| Cooling system | water cooling |
| The weight | 120kg |
| The power supply | 220V 50Hz 10A |
Sample Display(Parts)
Profession and Honor
Please note: All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
